About this Product

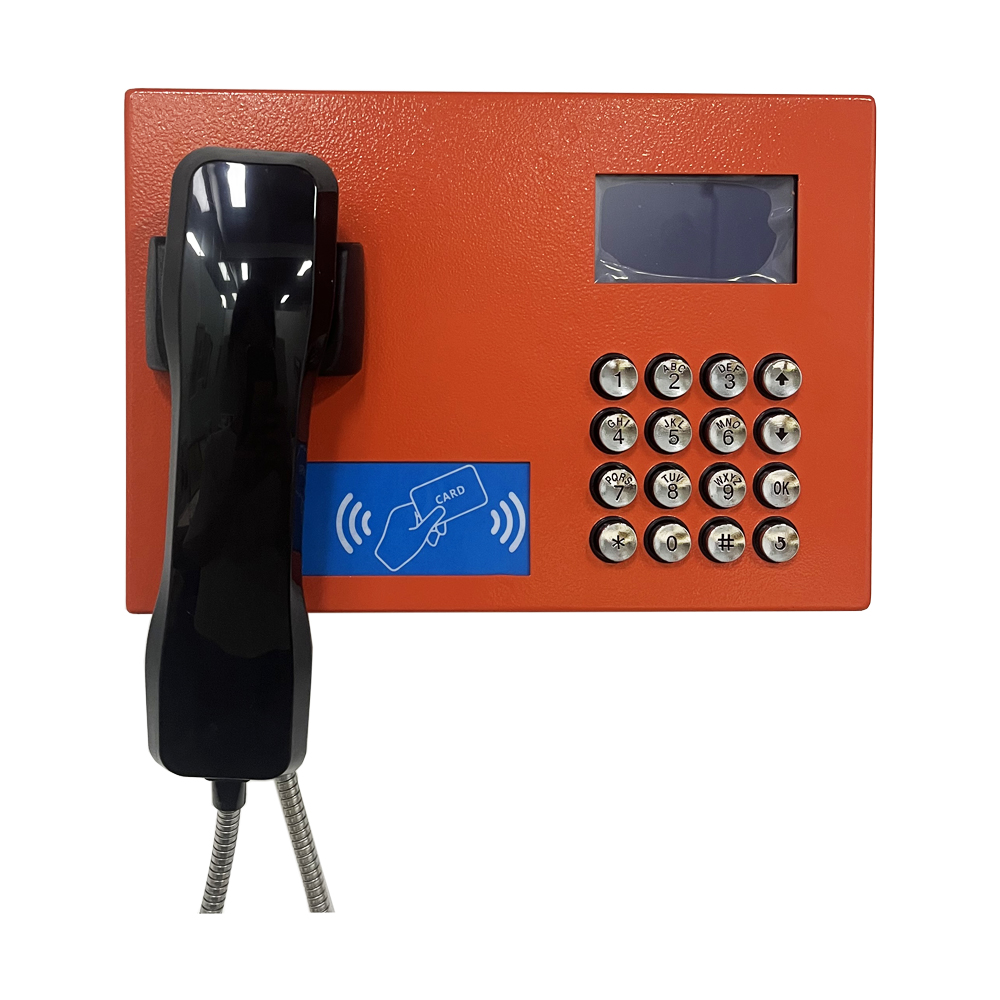

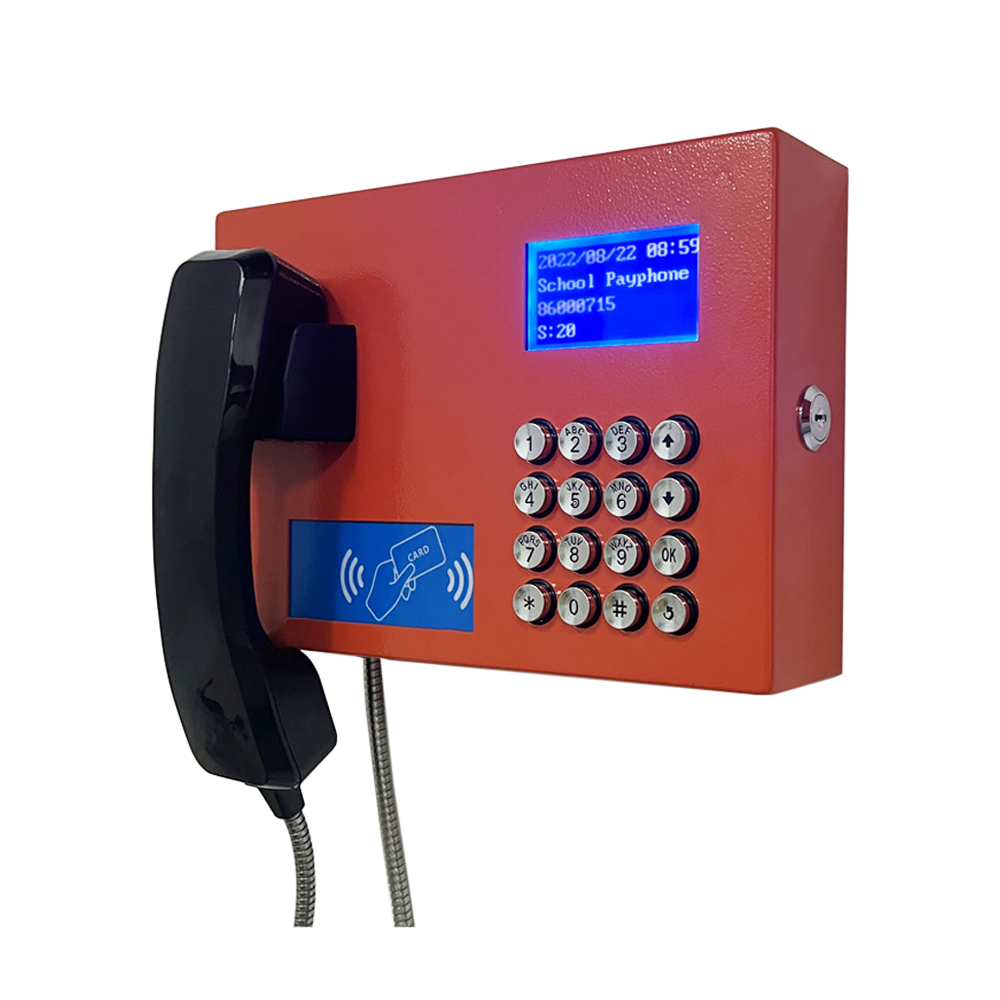

This is an outdoor wall-mounted payphone supporting payment with RFID cards (Mifare card), by inserting a 4G SIM card inside. Designed with anti-vandalism casing and parts for high performance, it is applicable for airports, scenic spots, streets, schools, factories, armies, and jails, etc.
The Payphone is plug-&-play and easy to install. And the operator can define the call rate and check revenue records via the cloud-based NMS platform.
FUNCTIONS
- Complete visual prompts offer a friendly operation instruction.
- Modular design and appropriate layout for convenient maintenance.
- Robust casing and superior sealing give high resistance to dust, water, corroding and vandalism.
- Offer cloud-based Network Management System (NMS) to manage 100,000 sets of Payphone and provide exportable statistics reports.
APPLICATIONS
Suited for outdoor or unsupervised environment, such as:
- Parks;
- Streets;
- Resorts;
- Schools;
- Jails.
SPECIFICATIONS
-
Environmental Conditions
- Temperature: -10°C to 60°C (operation)
- Humidity: 10% ~ 95% non-condensing
- Atmosphere Pressure: 86 ~ 106 kPa
-
Power Requirement
- External adaptor (input: 100~240 VAC, 50/60 Hz / output: 12VDC, 1A)
- Power consumption: 6 watts
- Support solar power supply
-
Supported Network/Technology
- LTE FDD: B1/B3/B5/B8
- LTE TDD: B34/B38/B39/B40/B41
-
Remote Management via NMS (optional)
- Configure call tariff rates
- Check revenue records of each payphone
- Supervise running status of each payphone
- Generate top-up voucher code to add balance on cards or recharge call cost for specified called numbers
-
Compatible Card
- Mifare RFID card (13.56MHz)
-
Structural
- Housing Material: Steel plate
- 4G Antenna: 1x built-in antenna
- 1x 4G SIM card slot
- LCD: 4-line, 128X64 pixels, backlight supported, shock resistance ≥ 4,000N
- Pull Resistance of Handset Cord: Not less than 150 kg
- Lifespan of Metallic Keypad: > 1,000,000 operations
- Dimensions: 265 mm x 235 mm x 105 mm
- Weight: 2.05 kg
