About this Product

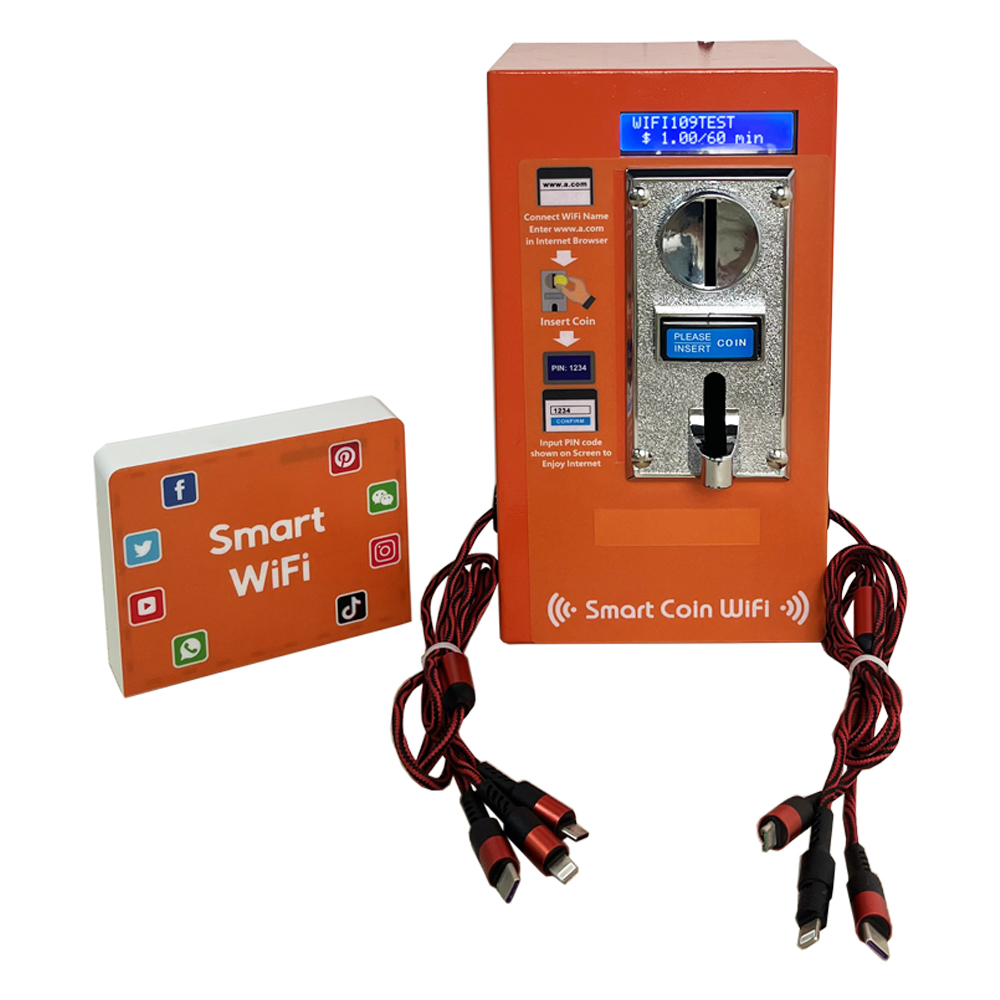

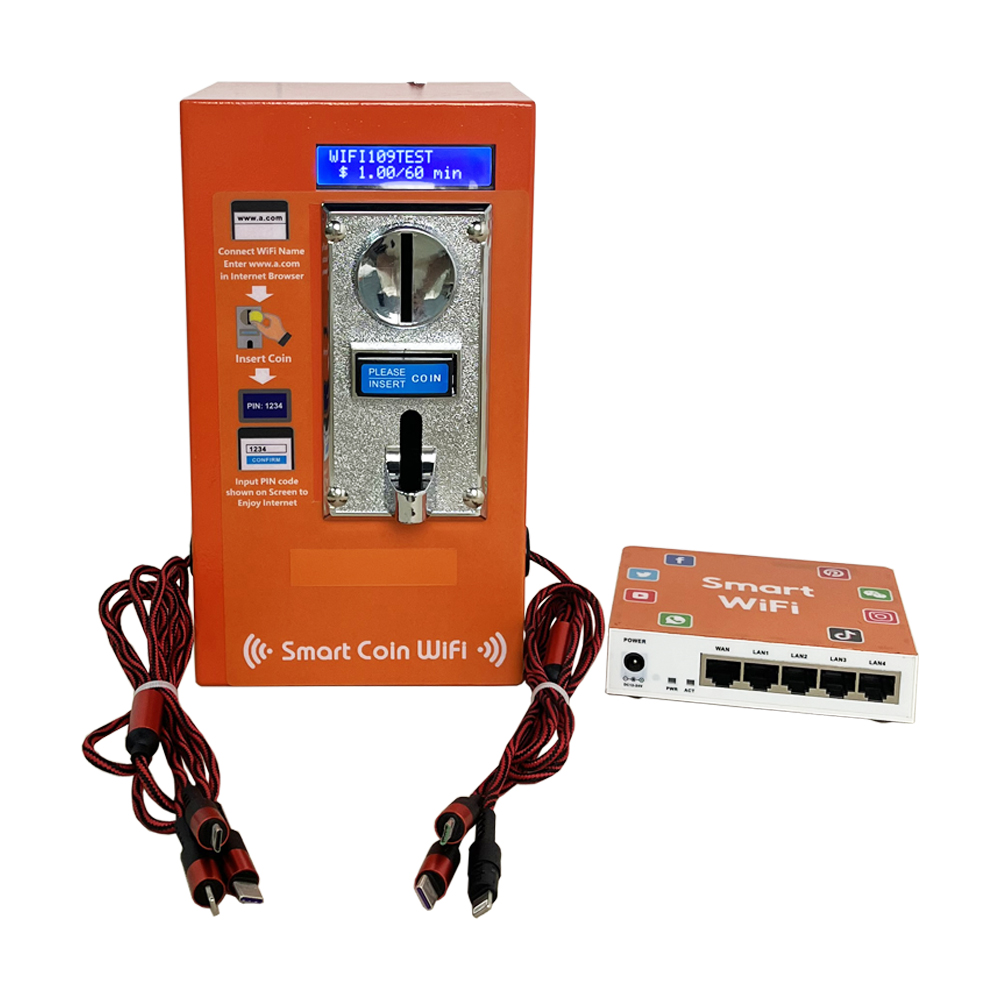

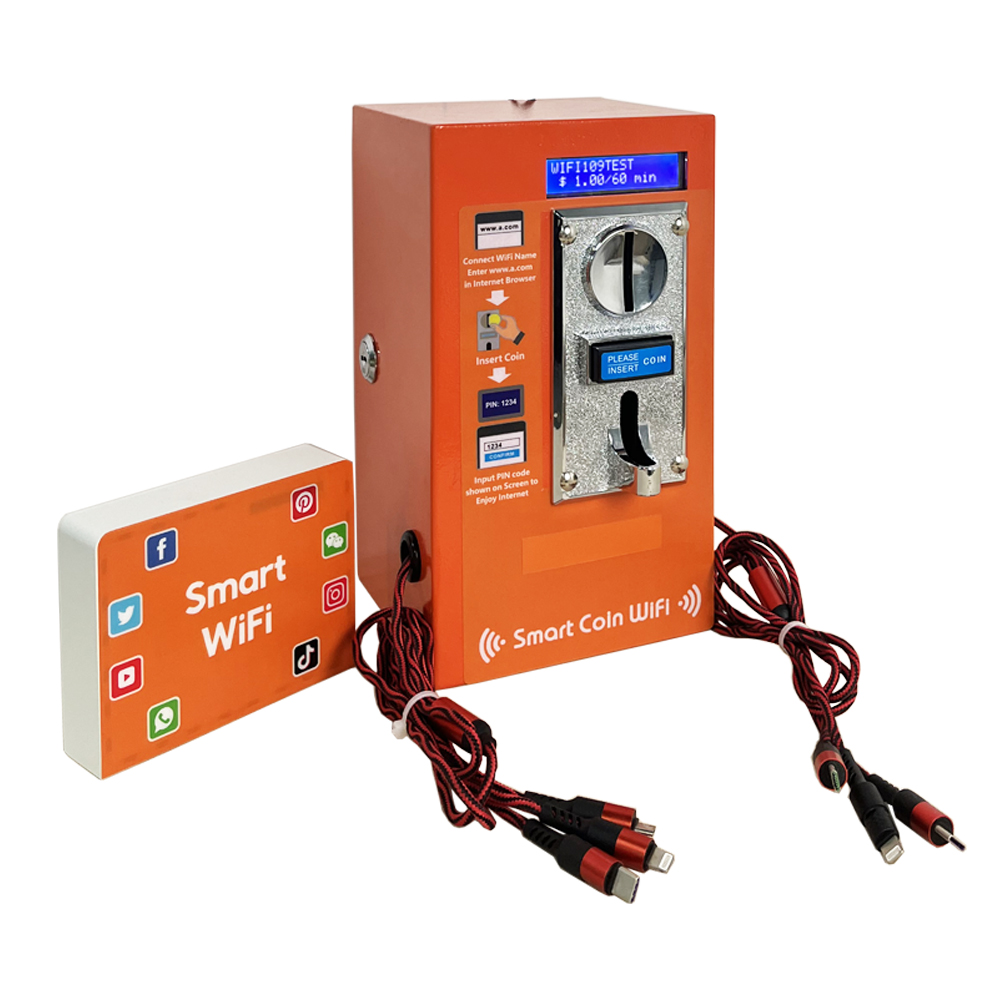

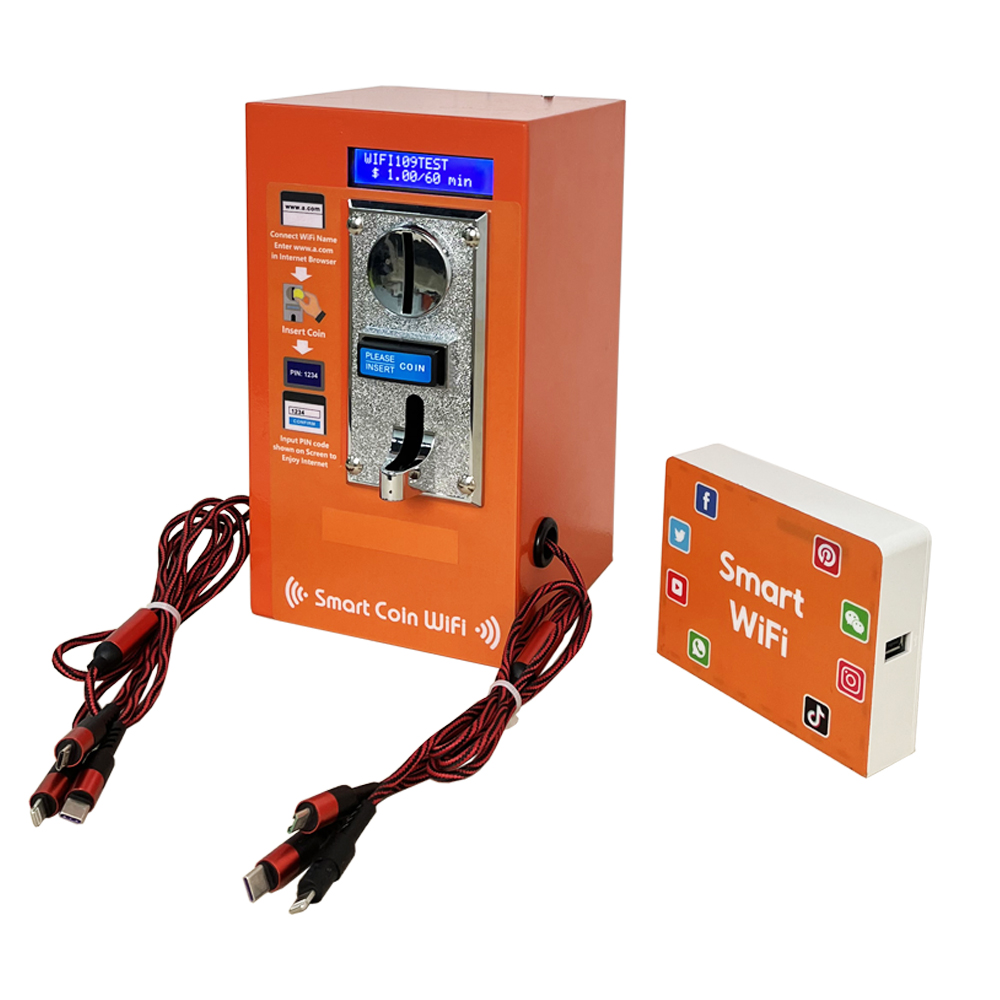

Smart Coin WiFi brings a brand-new vending business into public market. It is composed of 2 devices: Smart WiFi and Coin-operated Cellphone Charger. The Smart WiFi provides visitors an immediate WiFi Internet hotspot service charged by time or traffic data. The Cellphone Charger can help you get revenue automatically by selling power charging service.
The device is plug-&-play and easy to install. It can be widely used in public places like: restaurants, hotel halls, bars, coffee shops, waiting rooms, gyms, retail stores… And the best part is all investment can be returned in 1 month.
Presentation Video on YouTube:
FUNCTIONS
- Provide both WiFi service and cellphone charging service after inserting coins.
- Provide big WiFi signal range (around 100 meters for outdoor / 30 meters for indoor).
- WiFi connection supports around 50 concurrent users (depending on the bandwidth of Internet access)
- No need for supervision. Self-service working method to save labor cost.
- Provide user-friendly pop-up instruction page to tell end users how to get WiFi service.
- Offer cloud-based NMS (Network Management System) to monitor all online device remotely.
- Support account roaming between different Smart WiFi to help end users enjoy your WiFi service in multiple sites.
- With 2 durable charging cables supporting fast charging. Each cable has 3 connectors compatible with most Android and Apple device.
FEATURES
BENEFITS
- Venue owners can get extra revenue by providing WiFi hotspot service and attract more visitors which is good for his original business;
- Venue owners can display advertisements for their products on the login page for better promotion, or show ads for other shops to get income;
- No WiFi squatter or hacker to stole Internet because no username and password is required.;
- Travelers can get quick and cheap Internet access without paying expensive charge for data roaming or new SIM card;
- Visitors can check/send email, browse websites, and watch videos from any WiFi-enabled smart mobile phone, tablet, laptop, or handheld device.
APPLICATIONS
Suited for indoor or storefront public environment, such as:
- Long-stay place: dormitories, apartments, hotels, hospitals;
- Crowed public place: stations, food centers, restaurants, coffee shops, pubs, lounge bars, Karaoke bars, beauty salons, chain shops, lobby of banks/hotels;
- Sports area and recreation centers: gyms, bowling, billiards;
- Tourism place: international airports, beaches, parks, swimming pools, exhibition and convention sites.
Specifications
-
WiFi Operation Range
Radius up to 100 meters (outdoor) / 30 meters (indoor)
-
Power Requirement
- External adaptor for Smart WiFi(input: 100~240 VAC, 50/60 Hz / output: 12~24VDC, 0.8A)
- External adaptor for Cellphone Charger (input: 100~240 VAC, 50/60 Hz / output: 24VDC, 5A)
- Max. power consumption: 4 watts (Smart WiFi) + 24 watts (Cellphone Charger)
- No battery inside
-
Remote Management via NMS (optional)
- Setting of WiFi name power charging price and data speed limit
- Offer voucher codes for wifi service
- Revenue records of WiFi Internet service & cellphone charging service
- Supervision on running status of each device
-
WiFi Frequency Range
Dual-Band: 2.412 to 2.484 GHz and 5.150 to 5.875 GHz
-
Environmental Conditions
- Temperature: 5°C to 45°C (operation) / -10°C to 60°C (storage)
- Humidity: 10% ~ 85% non-condensing
-
Authentication
Built-in user authentication and accounting
-
About Charging Cable
- Output: 5 ~ 12 VDC, 1 ~2 A
- 2 x 1.25 meter
- Fabric braided
- Connector Type: IOS + Micro USB + Type C, 3 in 1
-
Networking
- IEEE 802.11 b/g/n and 802.11 a/n/ac Wireless LAN
- Zero end-user configurations
-
About Coins
- Coin Acceptance: 6 different types
- Usable Coins: Diameter: 15mm ~ 29mm, Thickness: 1.8mm ~ 3.0mm
- Coin Capacity: 0.3 liter (around 100 coins)
-
Structural
- Smart WiFi Housing Material: ABS plastic
- WAN Interface: 1x RJ45 port
- LAN Interface: 4x RJ45 ports
- Antennas: 1x WiFi (built-in)
- Smart WiFi Dimensions: 113mm X 89mm X 28mm
- Smart WiFi Weight: 0.2 kg
- Coin-operated Cellphone Charger Housing Material: Cold rolled steel
- LCD: 2-line, 128X32 pixels, backlight supported
- Coin-operated Cellphone Charger Dimensions: 130mm (H) X 130mm (W) X 230mm (D)
- Coin-operated Cellphone Charger Weight: 1.8kg
FAQ
- How does the Smart WiFi get Internet?
-

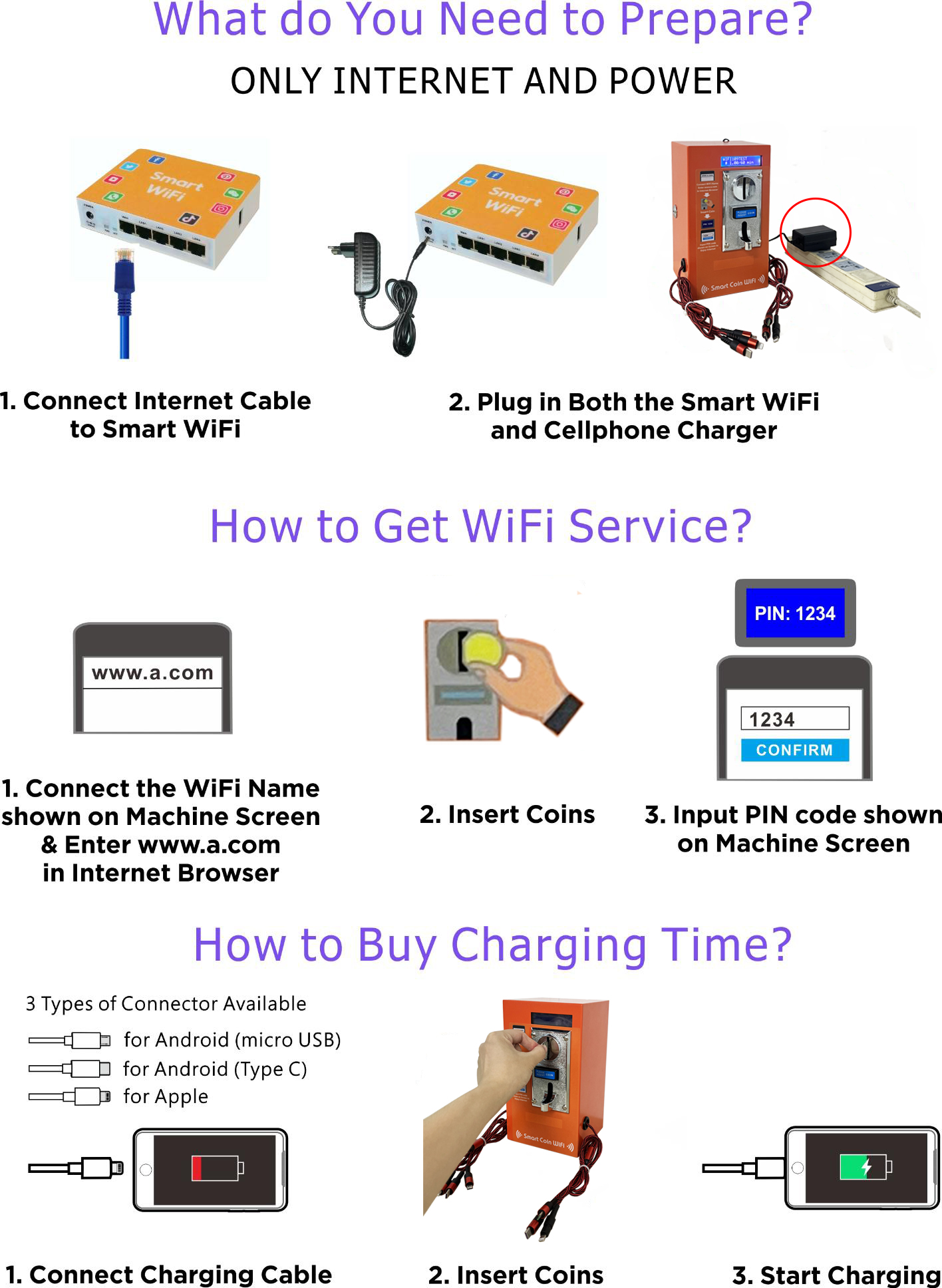

You need to connect the Smart WiFi to a DSL/Cable/Fiber Optic modem or a router via an Ethernet cable.
- Can I extend the WiFi signal coverage range?
-
Yes, we recommend you to connect the Smart WiFi with our Access Points (AP) to extend the coverage. We will provide professional suggestion if you can provide the plan diagram of the area.
- Can I add my company name and logo on the Smart WiFi?
-
Yes, we can provide OEM service based on batch orders.
- Can the Smart WiFi support more than 50 concurrent users?
-
Yes, we have high-end version of router to work with Smart WiFi to support 200, 300 or 500 concurrent users with different price.
- Can I set the price for WiFi service? Is it based on time duration or bytes usage?
-
Yes, you can set the price in the cloud-based NMS (Network Management System). Either time-based or data-based is supported.
- How long can I get my investment back if I want to do this business?
-
Usually it will take 3~6 months. It depends on the setting of WiFi service price and the number of WiFi service users at the installation site.
- How can I make sure that I can run this business successfully?
-
To make this business successful, there are 3 major factors: 1) Ability to find and acquire the appropriate installation place (especially the place where many people stay for a long time) and to pay for acquisition reasonably. 2)Facility and low cost of broadband Internet access. 3)Coverage and quality of WiFi signal.
